3-Way ball valve with Mounting Pad

3-Way ball valve with Mounting Pad

ss 3-Way ball valve with Mounting Pad
On Line:
Visit us on Line:
www.prcvalve.com/VR/ENGD
Ask for FREE Catalog
Email: Jane@grandetek.com
DESCRIPTION

Code: QT18/QL18

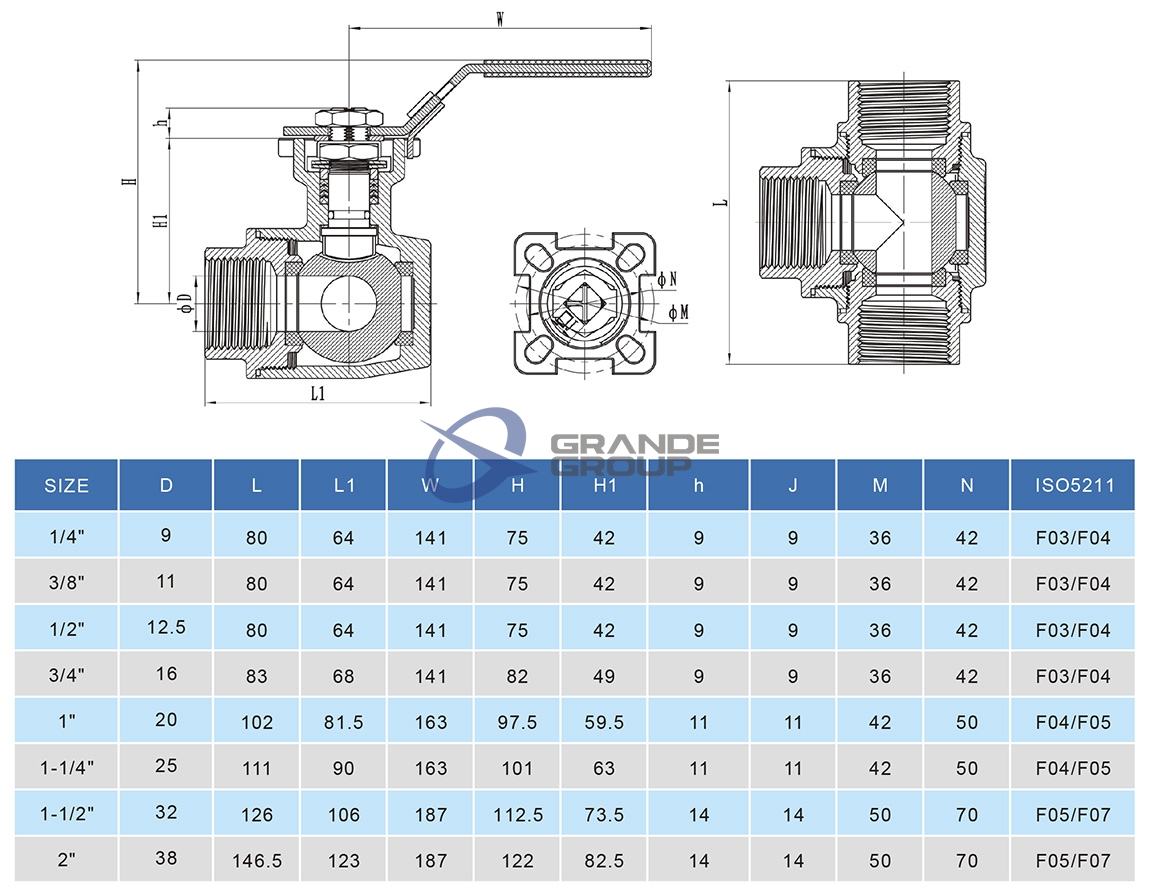

Description: 3-Way ball valve with Mounting Pad

Application:Water, Oil, Gas

Features:

* Material: Investment Cast Body & Cap CF8M/CF8

* Connection: Threaded, Butt-weld, Socket-welded

* Pressure: 1000PSI

* Size: 1/4”-2”

* Standard:

   Design: API608

   Inspection: API598, EN12266

   100% Tested at 100 PSI (7 Bars) Open & Close Position

* Options:

   L type or T type

   Wide Range Of Seat And Seal Materials Available

   Locking lever

* Approvals: ATEX

Design Advantage:

* Blow-out Proof Stem SS316

* 3-piece Swing-out Design

* Adjustable Stem Packing

* Anti static device- standard applied between stem and body, stem and ball

* Extra high cycle life

threaded ball valve.pdf
