3pc Fire-proof Ball Valve with mounting pad 2000PSI

3pc Fire-proof Ball Valve with mounting pad 2000PSI

ss 2PC Ball Valve With Mounting Pad(B)
On Line:
Visit us on Line:
www.prcvalve.com/VR/ENGD
Ask for FREE Catalog
Email: Jane@grandetek.com
DESCRIPTION

Code: QC10(9)F-00

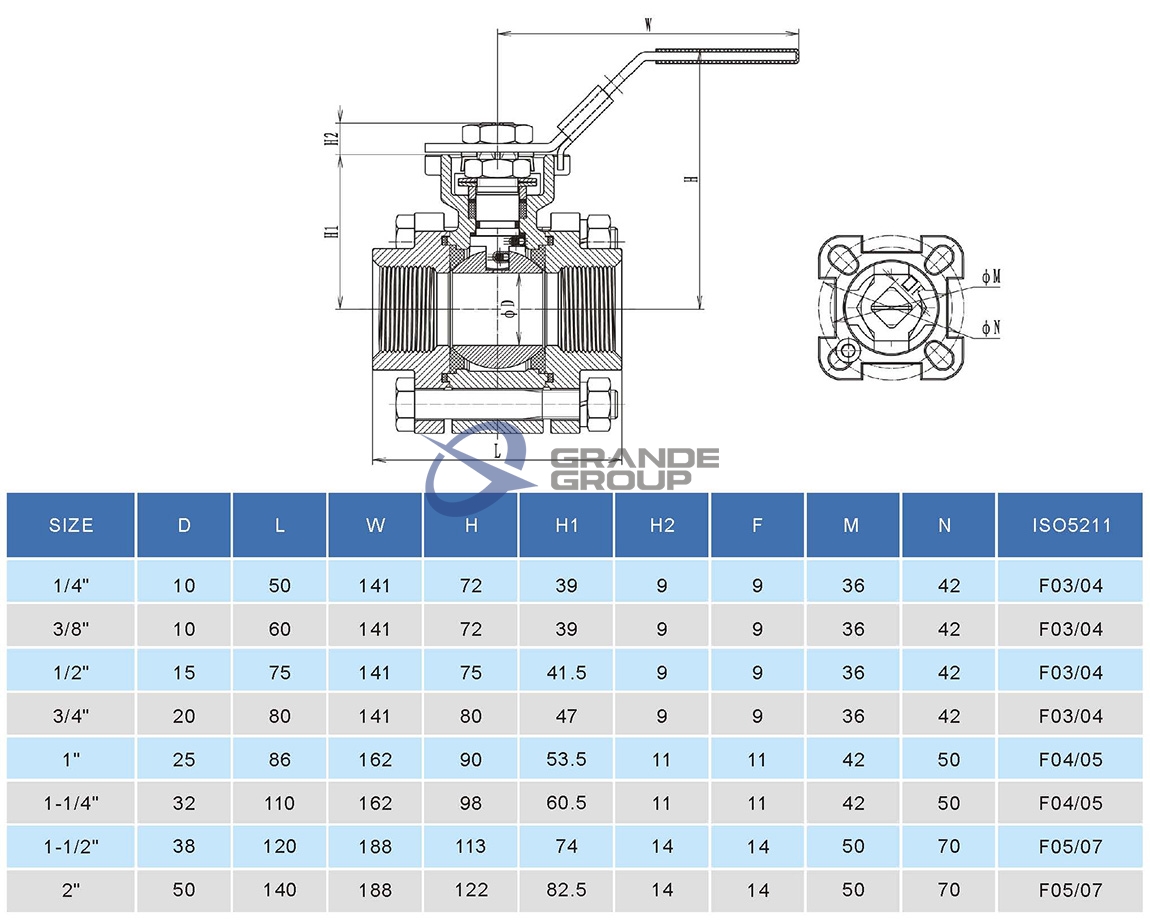

Description: 3PC Fire-proof Ball Valve With Mounting Pad

Application:Water, Oil, Gas

Features:

* Material: Investment Cast Body CF8M/CF8

* Connection: Threaded

* Pressure: 2000PSI for 1/4” to 1”, and 1500PSI for 11/4” to 2”.

* Size: 1/4”-2”

* Standard:

  Design: API608

  Inspection: API598, EN12266

  100% Tested at 100 PSI (7 Bars) Open & Close Position

* Options:

  Wide Range Of Seat And Seal Materials Available

  Locking lever

* Approvals: ATEX

Design Advantage:

* Blow-out Proof Stem SS316

* Fire-proof

* High pressure

* Anti-static device

* Full bore design

* ISO 5211 standard actuator mounting pad

* Stem packing with O-ring and multiple seal

* Extra high cycle life
