DESCRIPTION

Code: QCB8(7)C

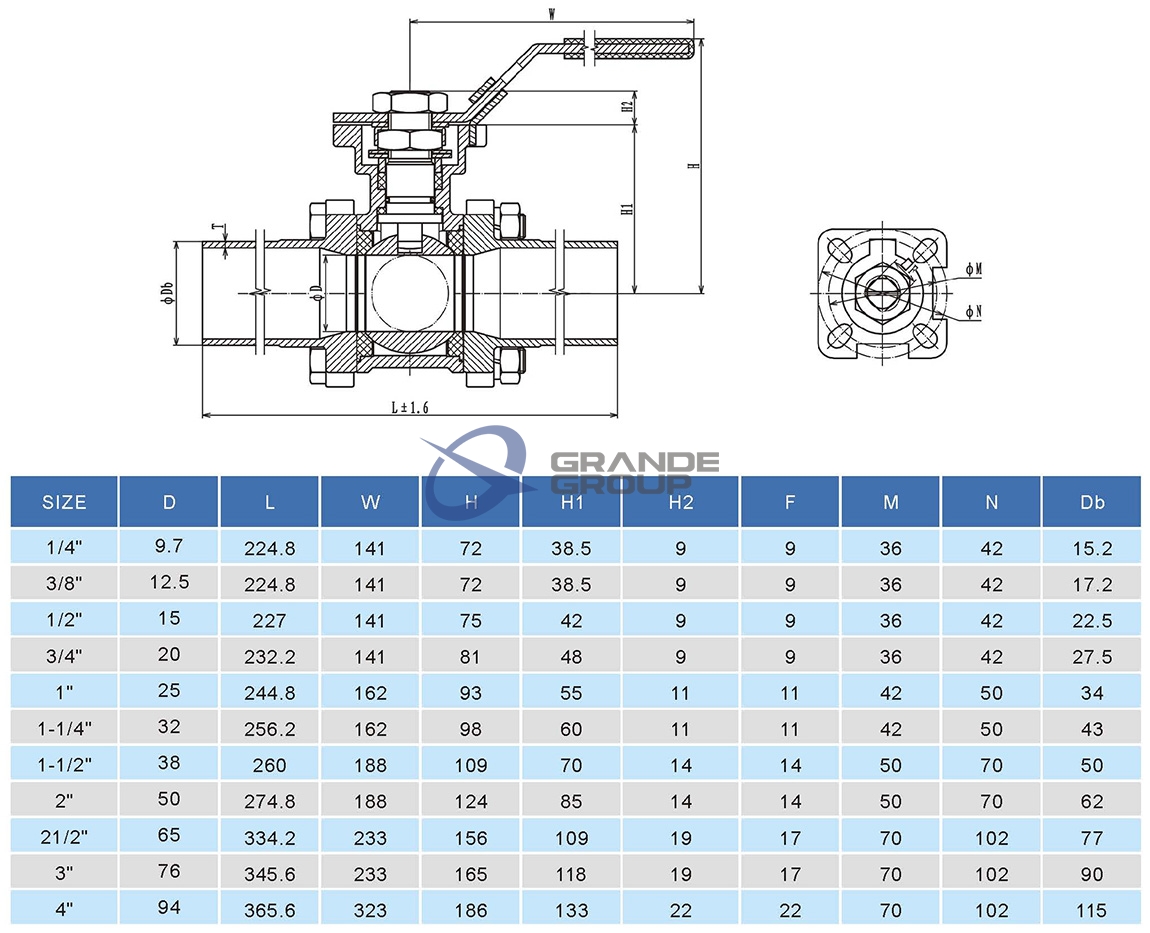

Description: 3PC Sanitary Butt Weld Ball Valve With Mounting Pad

Application:Water, Oil, Gas

Features:

* Material: Investment Cast Body CF8M/CF8

* Connection: Butt weld

* Pressure: 1000PSI for 1/4” to 2”, and 800PSI for 2-1/2” to 4”.

* Size: 1/4”-4”

* Standard:

  Design: API608

  Butt weld:ASME B16.25

  Inspection: API598, EN12266

  100% Tested at 100 PSI (7 Bars) Open & Close Position

* Options:

  Wide Range Of Seat And Seal Materials Available

  Locking lever

Design Advantage:

* Blow-out Proof Stem SS316

* Full bore design

*Lengthened butt welding connection

* ISO 5211 standard actuator mounting pad

* Stem packing with O-ring and multiple seal

* Extra high cycle life
